If the discharge continues, the voltage value will flash, and the alarm will beep once every 10s. LOW V-Zero capacity voltage: When the voltage is lower than the set value, the capacity will be automatically set to 0%.HIGH V-Full capacity voltage: When the voltage is higher than the set value, the capacity will be automatically set to 100%.
CAP-Preset capacity: An initial capacity has been set at the factory, please set it according to the real capacity of your battery.Click or key to select the setting items:.Press the key for 3s to enter setting menu.Then set the displayed AH capacity as the preset AH capacity.įor Sealed Lead Acid batteries it is recommended to set the AH lower than the usable rating after conducting a capacity test or consulting the battery manufacturer. Now charge the battery fully and the displayed AH capacity should be the actual usable capacity. Check and reset the actual capacity: If you find the displayed capacity doesn’t match the actual capacity during use, please check and reset the actual capacity.įor Lithium batteries discharge the battery to 0% and hold the “down” key for 3s to set the capacity to 0, then set the preset capacity as large as possible.This will only have to be done on initial installation of the Renogy Battery Monitor or if the Battery Bank is replaced. Capacity calibration: On first use, the percentage and capacity are not the actual value, you need to calibrate the capacity to either 100% or 0%.įirst set the usable AH capacity of the battery as the preset AH capacity.įor Lithium and Sealed Lead Acid batteries to calibrate to 100% charge the battery fully and hold the “up” key for 3s to set the capacity to 100%įor Lithium batteries to calibrate to 0% discharge the battery completely and hold the “down” button key for 3s to set the capacity to zero.If the deviation is large, please check the connection. Then charge or discharge the battery and check whether the display current is equal to the actual current. If the screen has no response, please check the connection. Connect and check the current: Power on after completing the connection as shown, the screen should display capacity percentage.Then put The Renogy Battery Monitor into the rectangular orifice, and make sure the tabs are locked. First, open a rectangular orifice on your equipment panel according to the size. The Renogy Battery Monitor is fixed by tabs, so it is easy to install.
#Aili battery monitor wiring diagram series#
The shunt must be series connected to the negative circuit, DO NOT connect to the positive circuit. P- of shunt connects to P- of output and C- of charge.Īttention: Please connect as shown. B- of shunt connects to B- of the battery. Identification of Partsįirst, connect the Shunt in series to the negative circuit of your battery.
#Aili battery monitor wiring diagram portable#
It is suitable for mobile and portable equipment, e-bike, motorcycles, electric wheelchairs, and so on. The Renogy Battery Monitor has a memory function which allows users to set a low voltage capacity alarm.

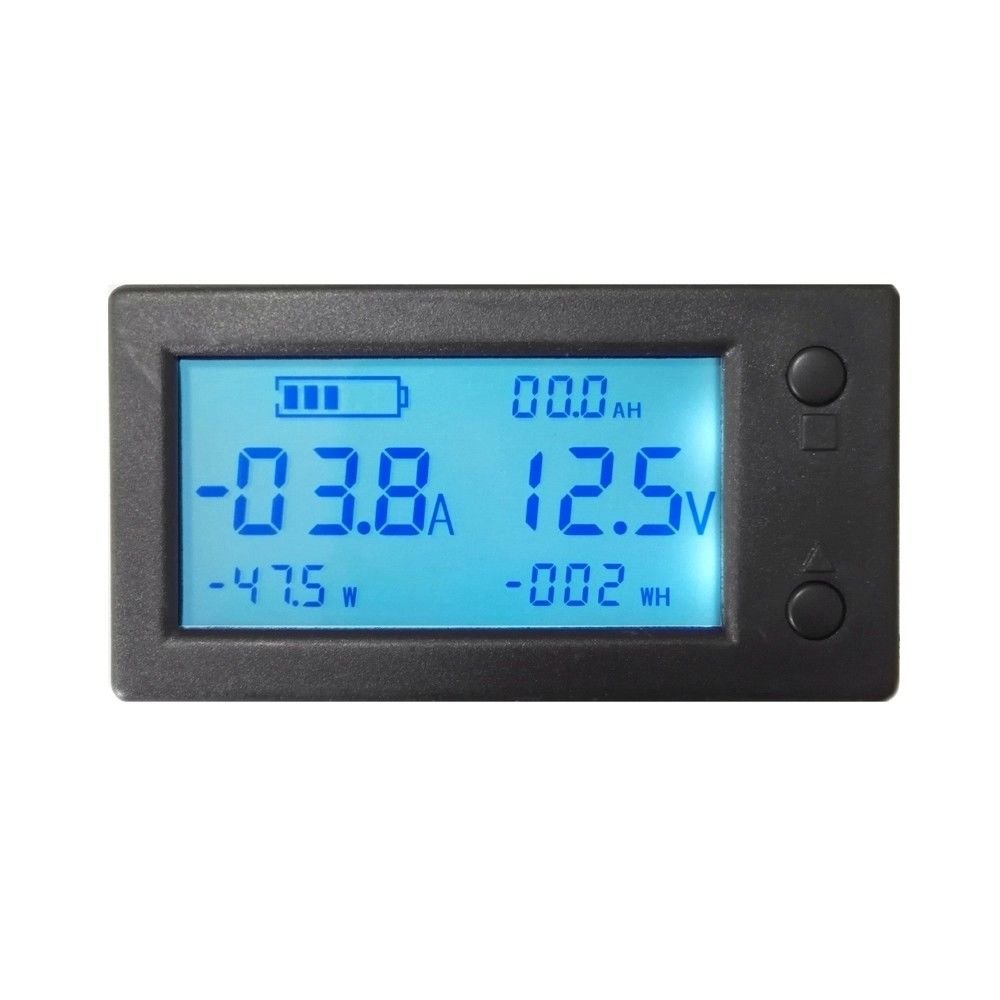

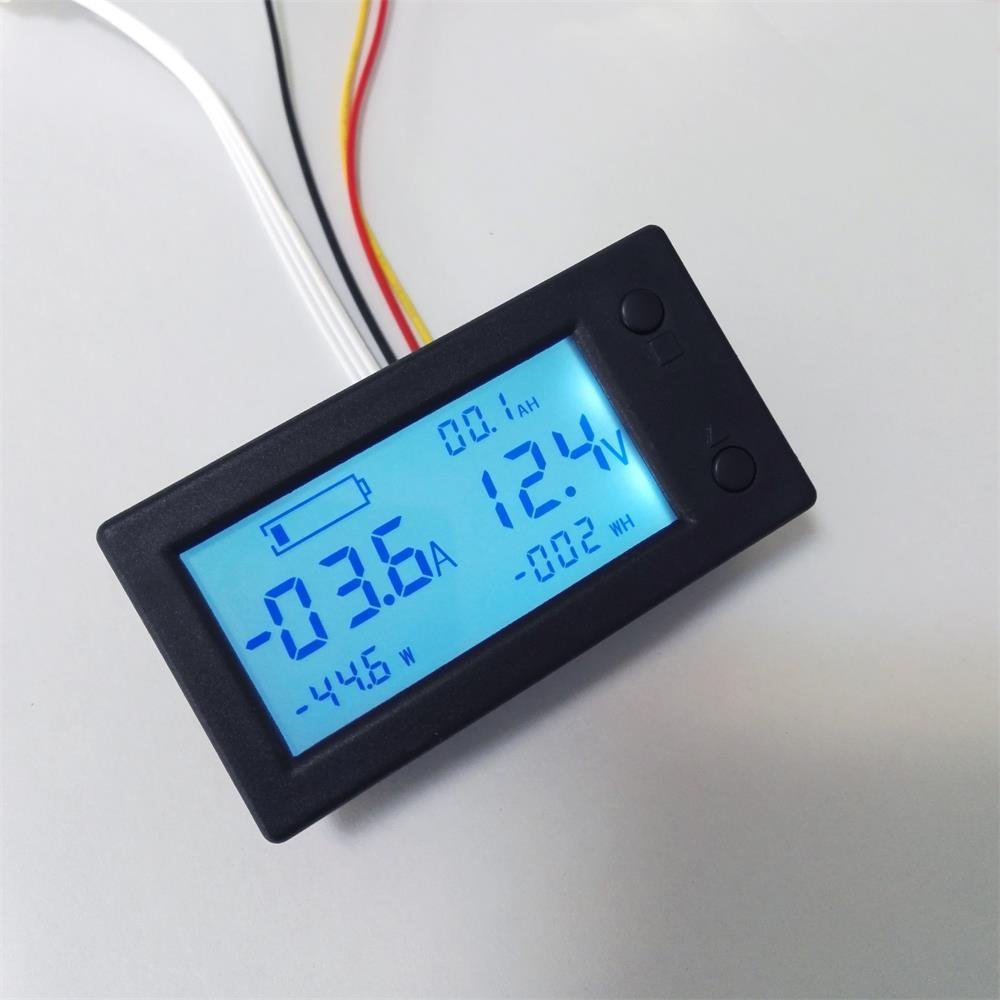

The Renogy Battery Monitor is a high precision device (also known as coulometer), which can test the voltage, current, and capacity of a battery to help users know the state of charge at any time. Please follow the battery manufacturer’s safety instructions.Never connect a load to a battery without using fuses or circuit breakers.Do not charge batteries in an enclosed environment unless allowed by the manufacturer of the battery. It is the user’s responsibility to operate the equipment in a safe manner.Wear eye protection and have fresh water available in case there is contact with the battery acid. Be careful when working with large lead acid batteries.Be certain there is enough ventilation to release the gases. Explosive battery gases may be present while charging.Do NOT let the positive (+) and negative (-) terminals of the battery touch each other.The Renogy Battery Monitor can’t be exposed in the sun for a long time or in the environment with large amounts of ultraviolet radiation when using or storing, in winter (＜ -10℃) and summer (>60℃) otherwise the life span of the LCD will be shortened.
